Description

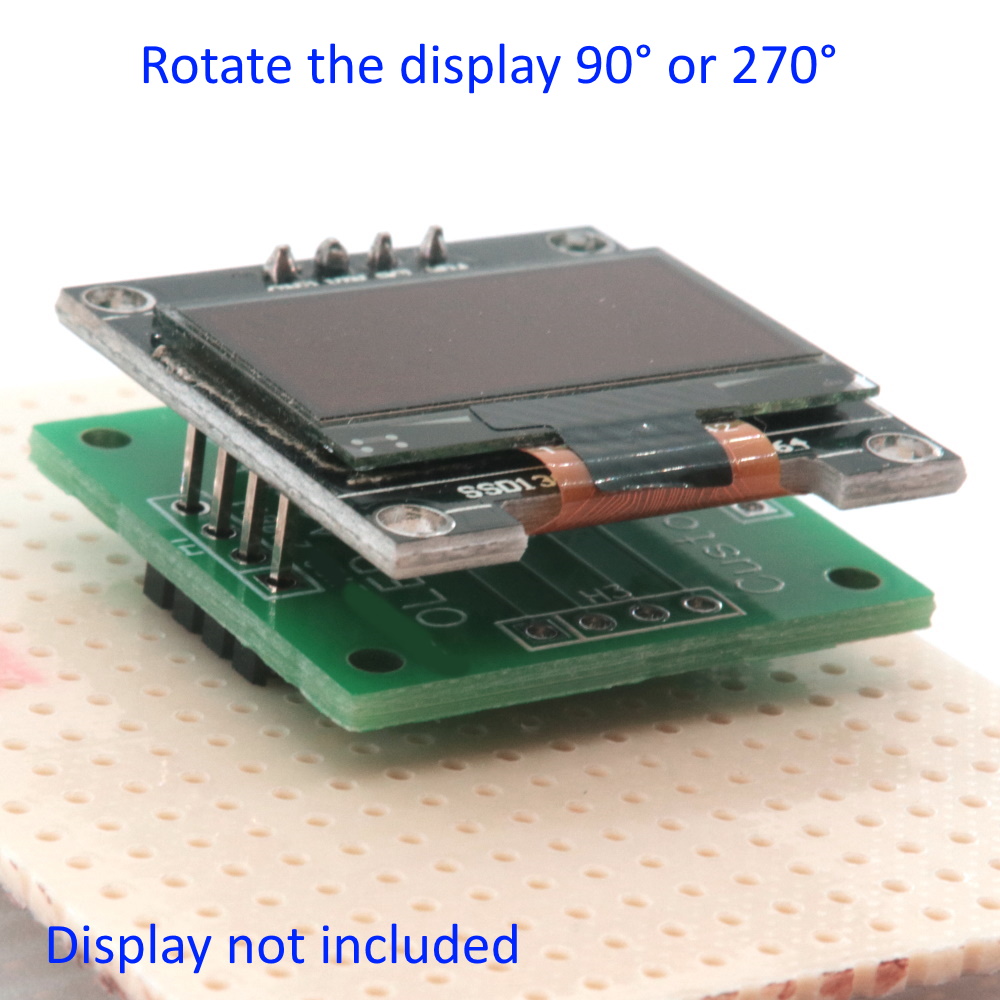

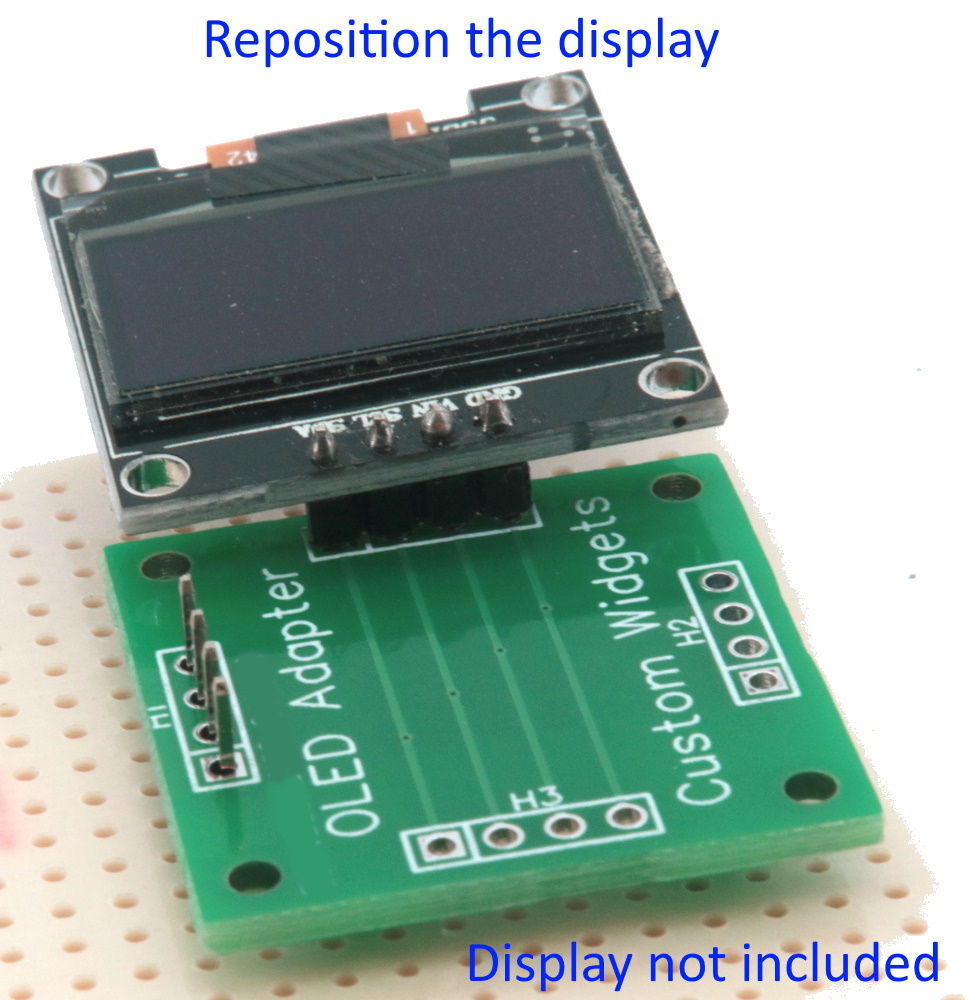

This incredibly useful little adapter PCB allow you to mount your I2C/IIC OLED adapter in a very flexible variety of angles, rotations and orientations!

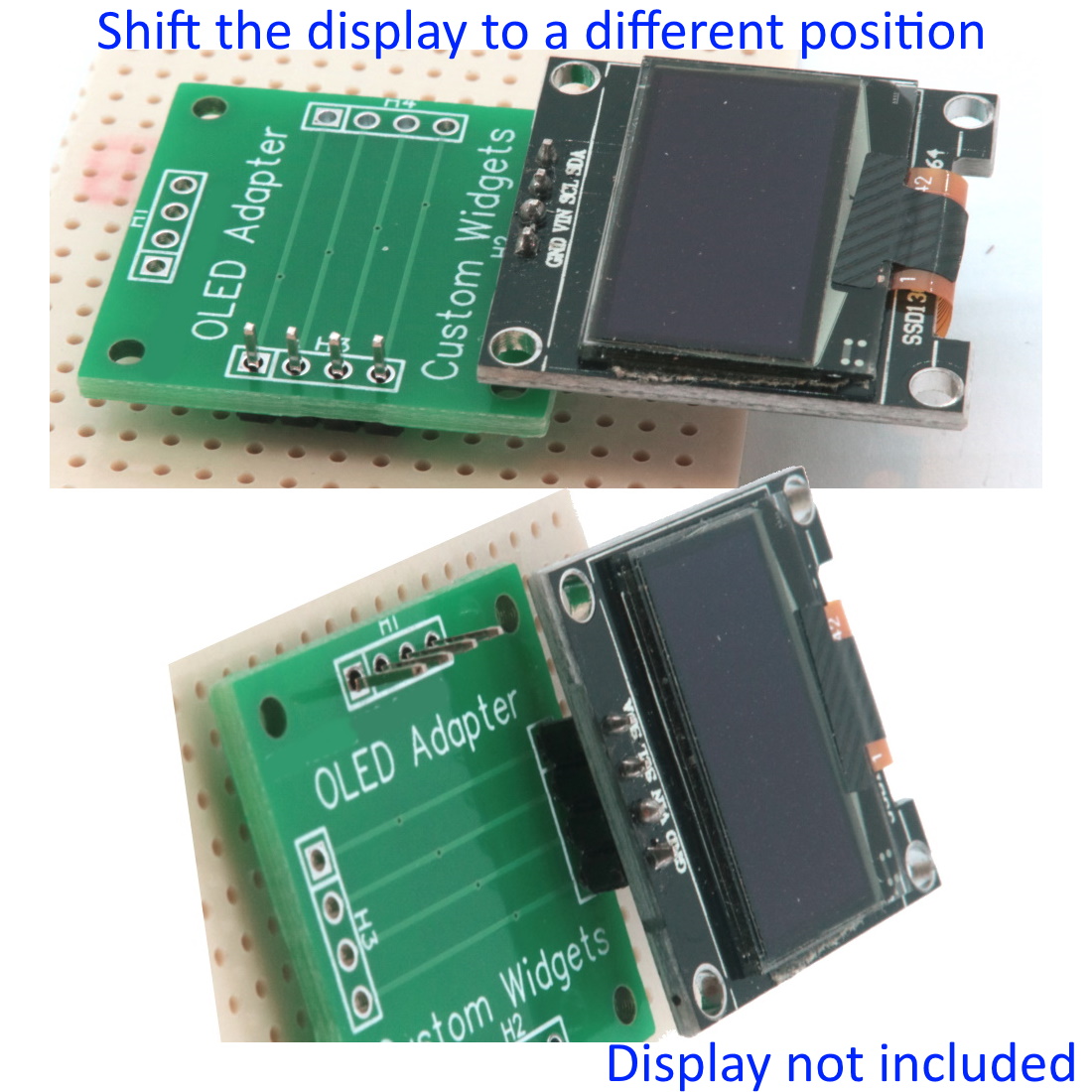

Although some display orientation changes are possible in software, this adapter enables very flexible mounting angles and rotations.
Using right angle headers opens up even more positioning possibilities.

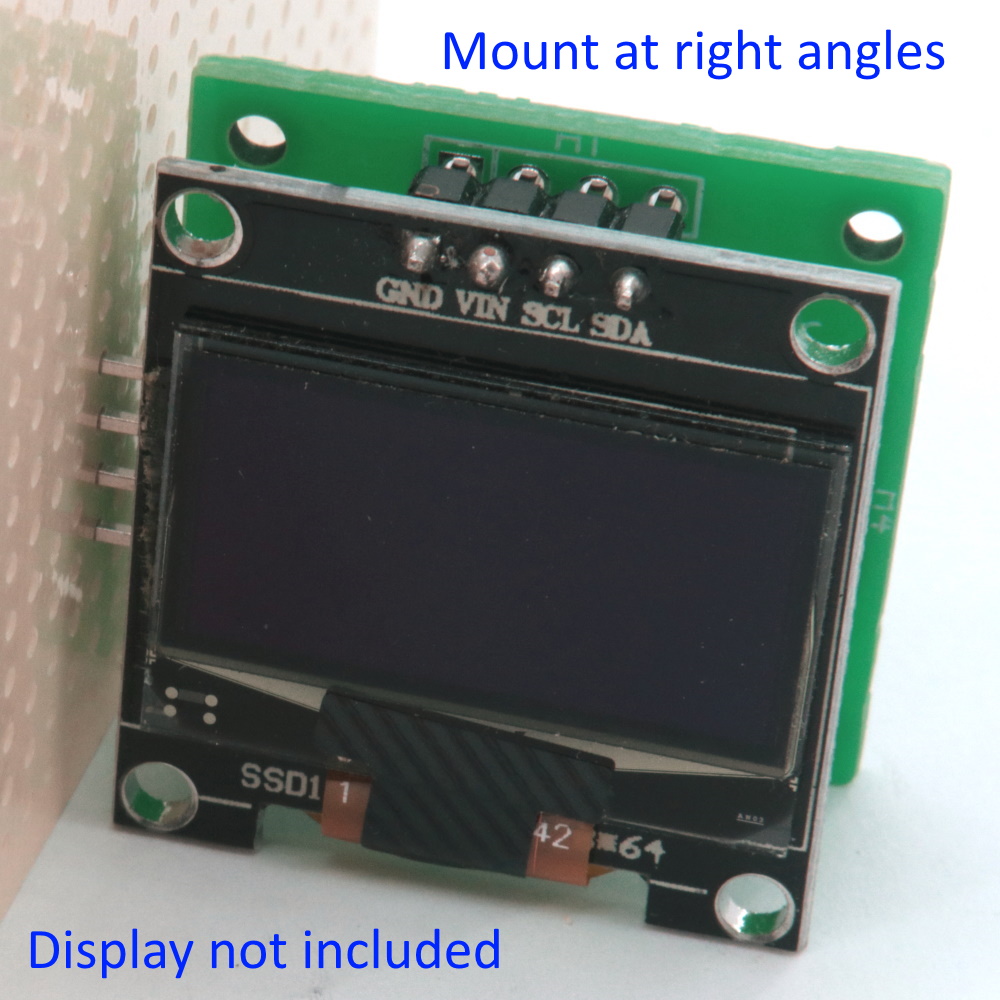

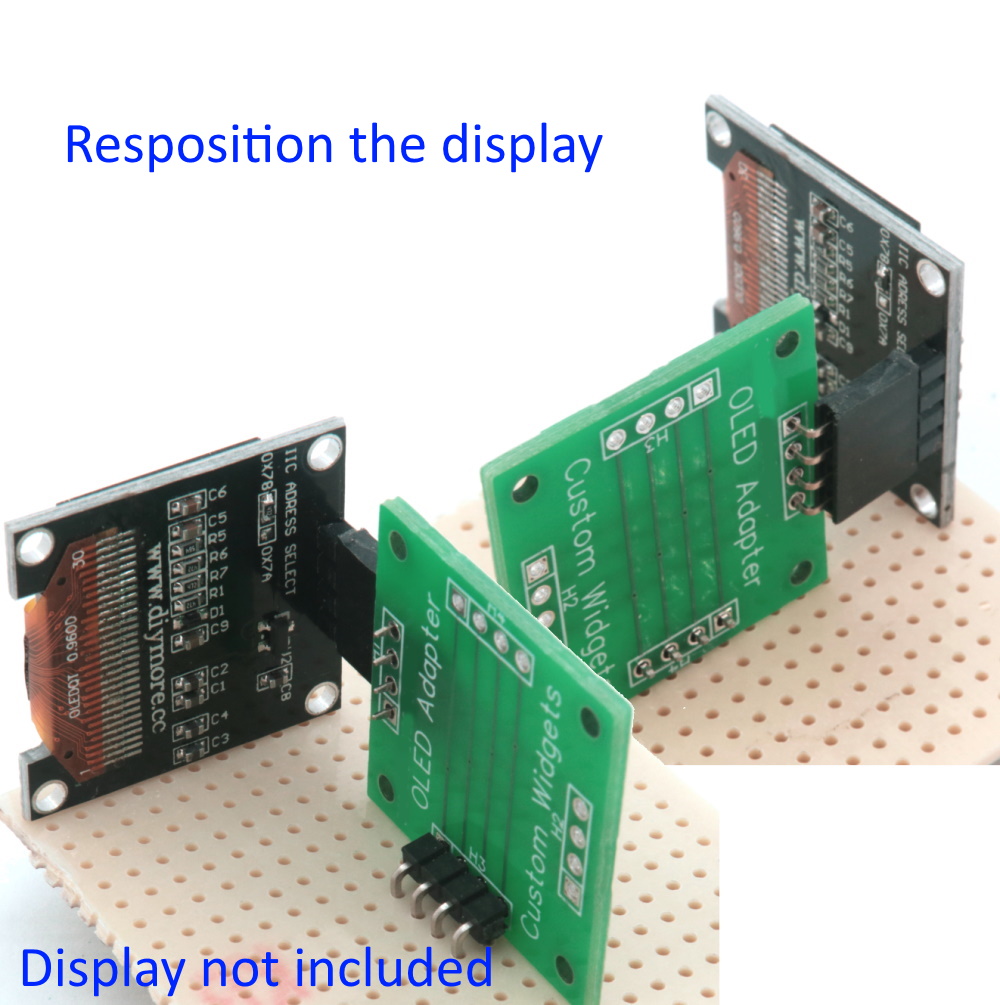

For example. it can be quite awkward to mount an OLED display at right angles to the main PCB, or upside down. This board is ideal for adapting the position of a display without messy wiring and awkward DIY brackets.
You can also use the PCB to mount a display remotely from your main PCB using a ribbon cable. It has m2 mounting holes to ease positioning and assist mounting. Or maybe you can also using one of our bezels to complete that neat, tidy, professional finish.
This PCB adapter one of those accessories that you should keep in your toolbox because it opens up a wide range of layout possibilities and can solves many display mounting challenges in a simple, neat and professional way. And you can probably find other uses for it too, like interconnecting PCBs or adding modules at an angle to save space on your main PCB.
Details
The pins are mapped 1->1 up to 4->4 (on all 4 connectors). Note that for certain uses and orientations will mean that you need to match different pin numbers.
Dimensions: Approx 28mm x 28 mm
We supply the adapter PCB only. Headers and displays and NOT included.
