PCB Bezel surround mount for 0.96″ OLED 128X64 SSD1306 Display Module

£6.96£8.96

This bezel makes your Arduino, Raspberry PI or other project look neater and more professional. This bezel has been specifically made to fit the commonly-used 0.96″ OLED 128X64 SSD1306 Arduino Display Module that has a maximum size of 28mm x 28mm (i.e. the size of the display PCB).

This product comes in two different options.
1) Bezel for PCB mounting, where you wish to solder the OLED directly to your PCB
2) Bezel for PCB mounting with a stand-off, where you wish to use a female header socked to connect the OLED to the PCB



Clear
SKU: N/A Category:

Description

This product comprises a bezel only, to fit a 0.96″ OLED display. This bezel is fitted to a PCB.

Description

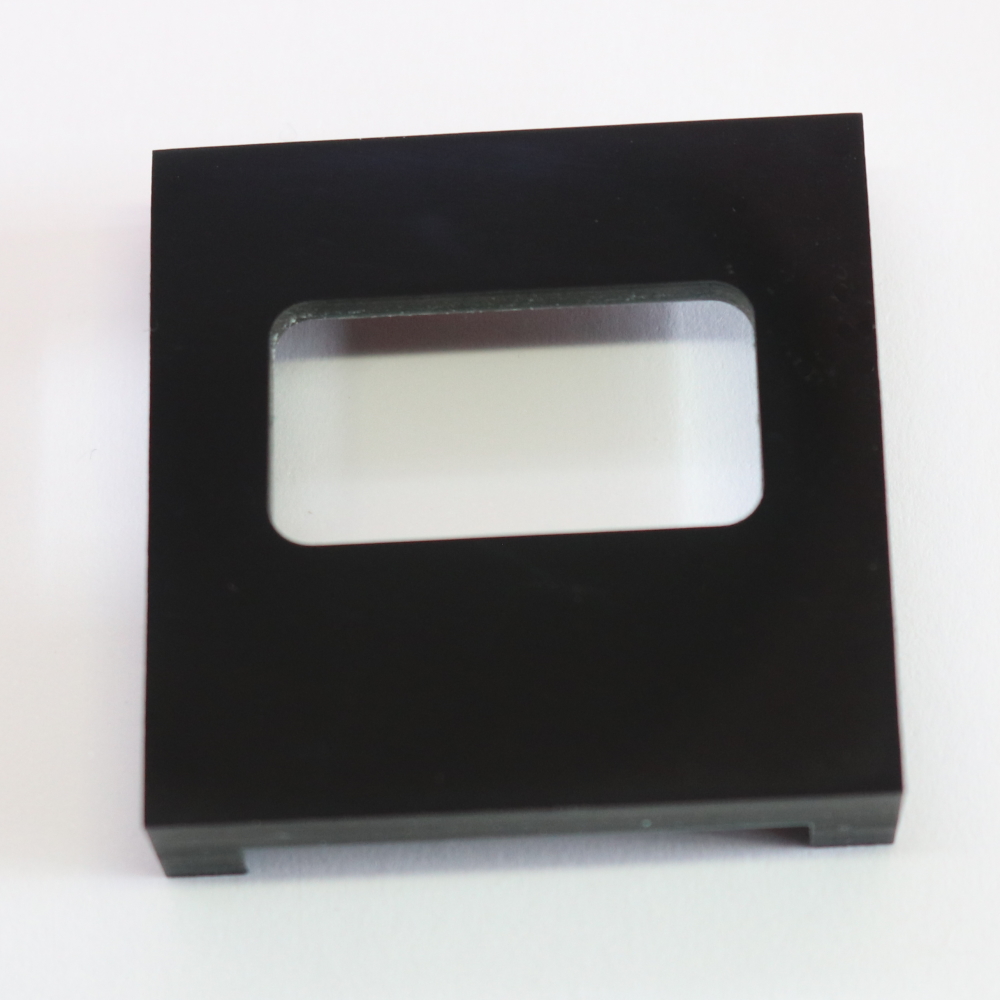

This Bezel is a custom-made part, machined from Perspex/acrylic sheet. The front of the bezel has a gloss black finish and all other surface have a machined finish. This is not a moulded part.

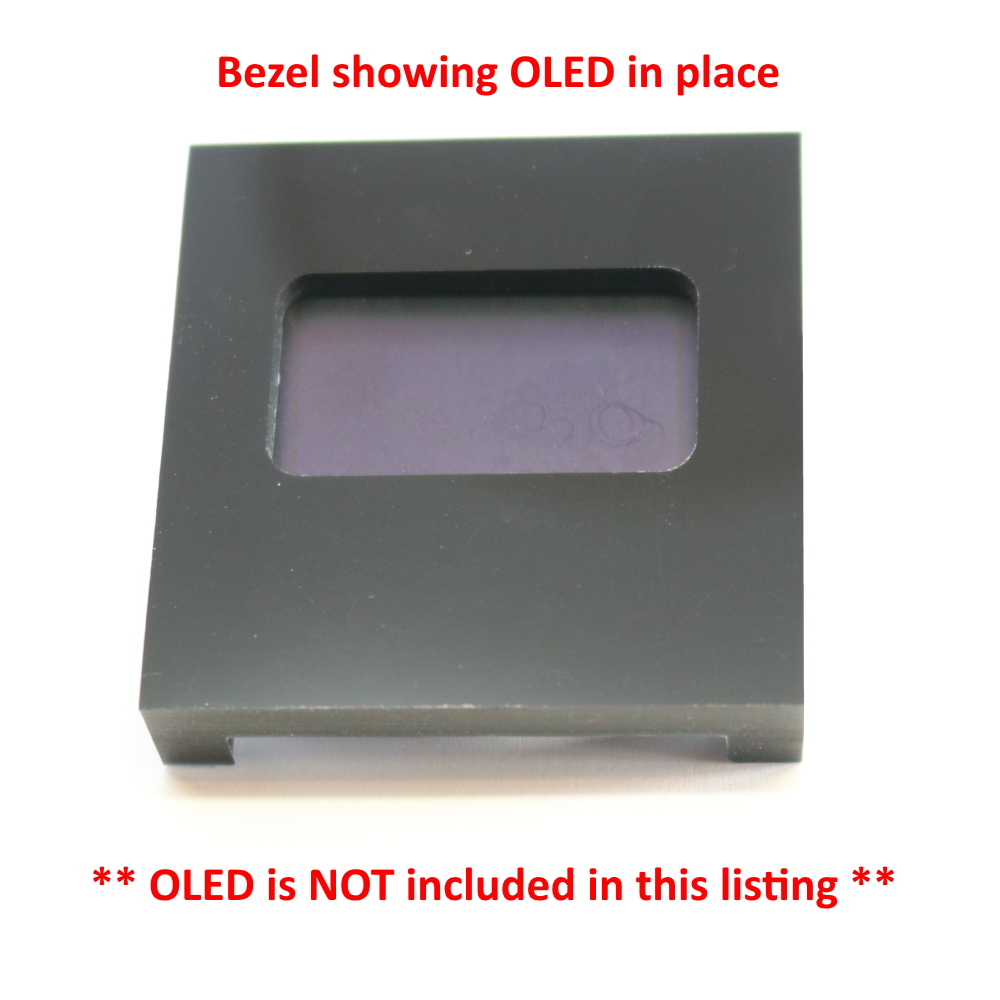

The OLED display (which is NOT included in this item) is fixed into the rear of the Bezel with adhesive. The Bezel (with the display) is then mounted onto the PCB using the screws provided.

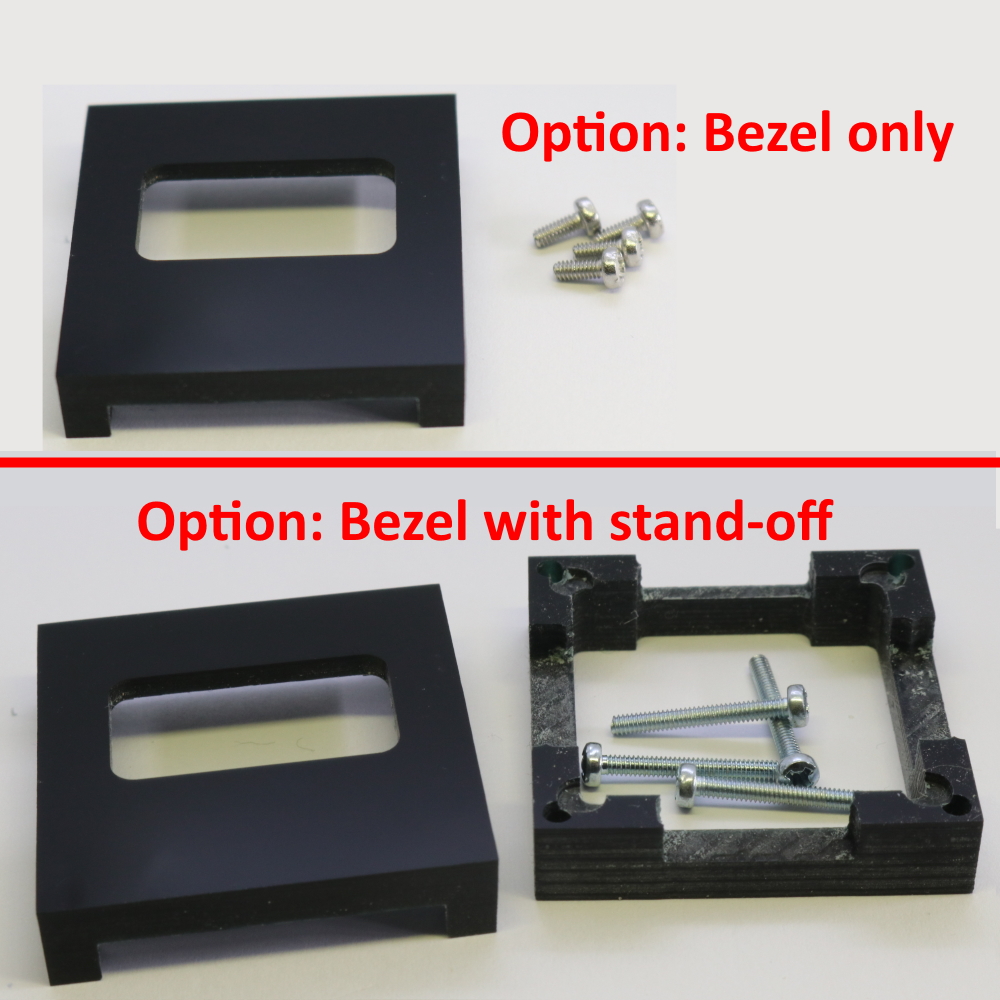

There are two versions of this item:

1) A Bezel with the necessary height for the OLED to be soldered to the PCB

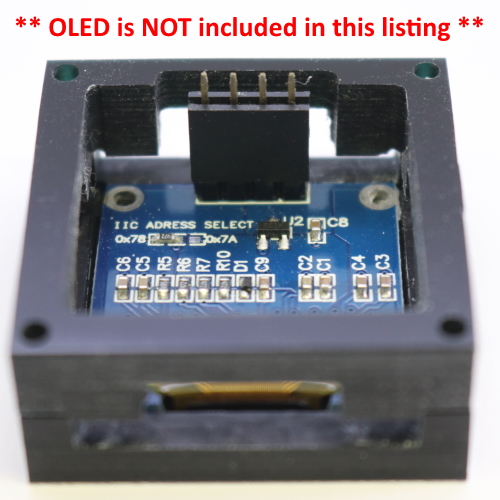

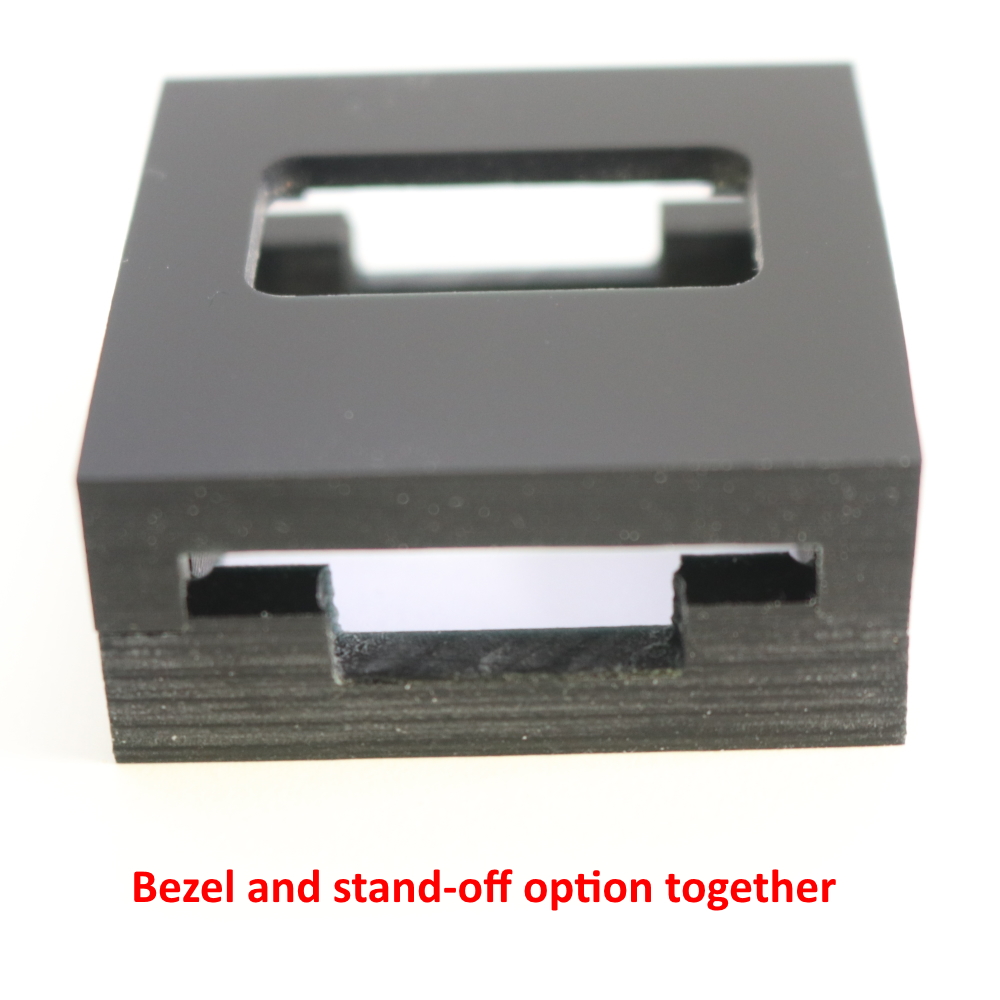

2) A Bezel with an additional stand-off to allow the use of a standard header socket connector (approx 8.5mm high excluding the pins) soldered to the PCB.

Note that you will need your own suitable adhesives to mount the display into the Bezel (we use superglue for this).

This Bezel has been specifically made to fit the commonly-used 0.96″ OLED 128X64 SSD1306 Arduino Display Module with an overall size of 28mm x 28mm (i.e. the total size of the display’s PCB). This Bezel is not designed to fit any other display. Please carefully check the dimensions of your display before buying.

How to use

Full instructions are included with the Bezel. In summary:

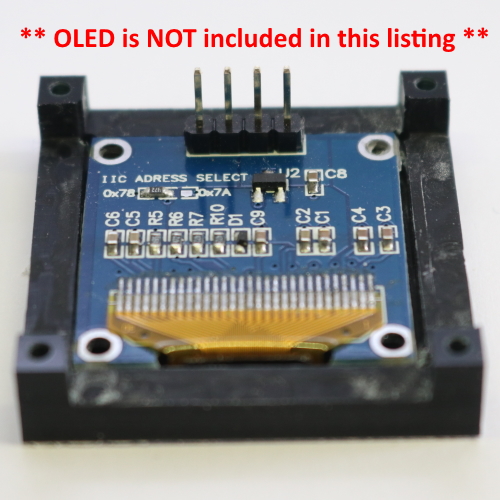

Although it isn’t necessary to use header pins, we have designed the Bezel for their use. You may use hook-up wires instead. After soldering the wires or header pins to the OLED display, the OLED display is mounted into the rear of the Bezel with adhesive (we use a “gel superglue” although we have also used epoxy adhesive).

The Bezel is then mounted onto the PCB and secured with the 4 screws provided.

Please carefully follow the instructions from the manufacturer of your chosen adhesives.

Specifications

Overall size: 36mm x 36mm
PCB mounting screw spacing 32mm x 32mm
Display module size: This Bezel will accept OLED displays up to 28mm x 28mm
Display window: 24mm x 13mm, positioned to work with the above OLED display module.
Total height/thickness: 8mm for the small version, and approximately 15mm with the stand-off
Material: Specially machined from Perspex acrylic
Colour: The front of the Bezel is gloss black, and all other surfaces have a machined finish.
*** This is a machined item using commercial Perspex, so its measurements may vary slightly.

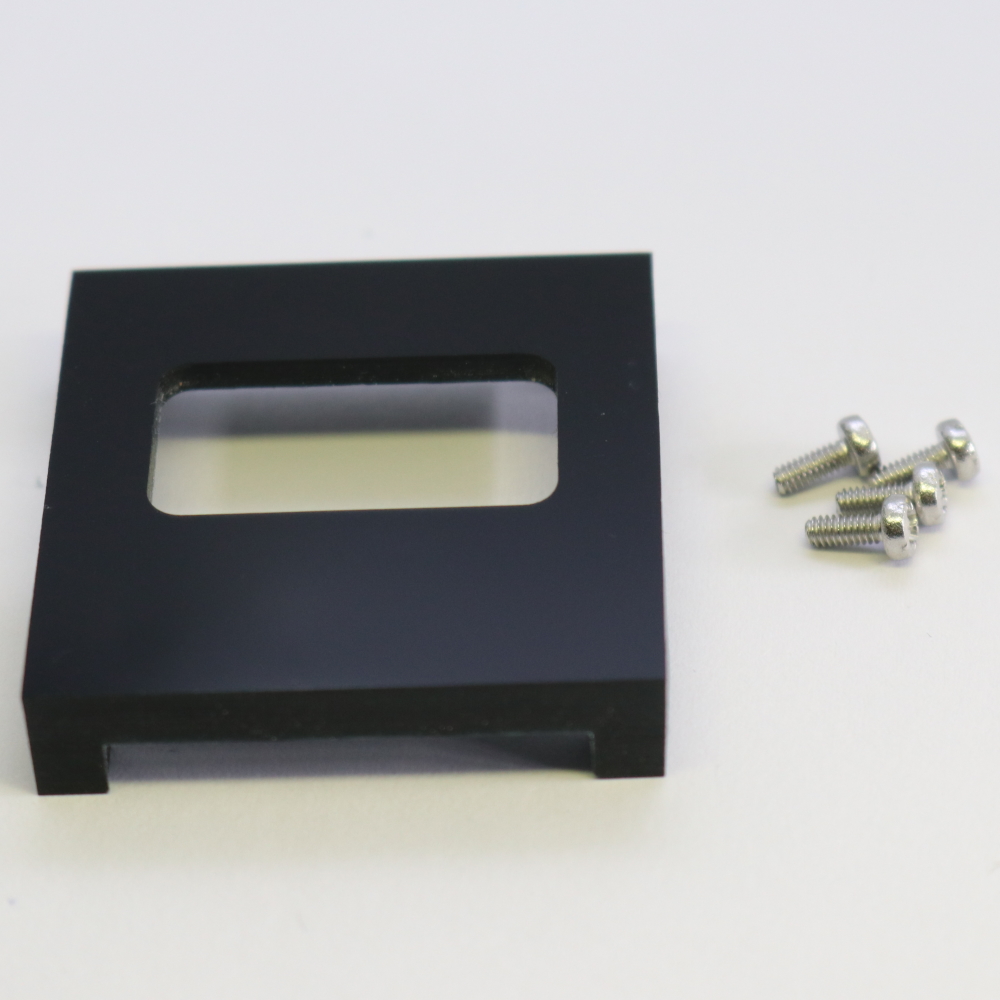

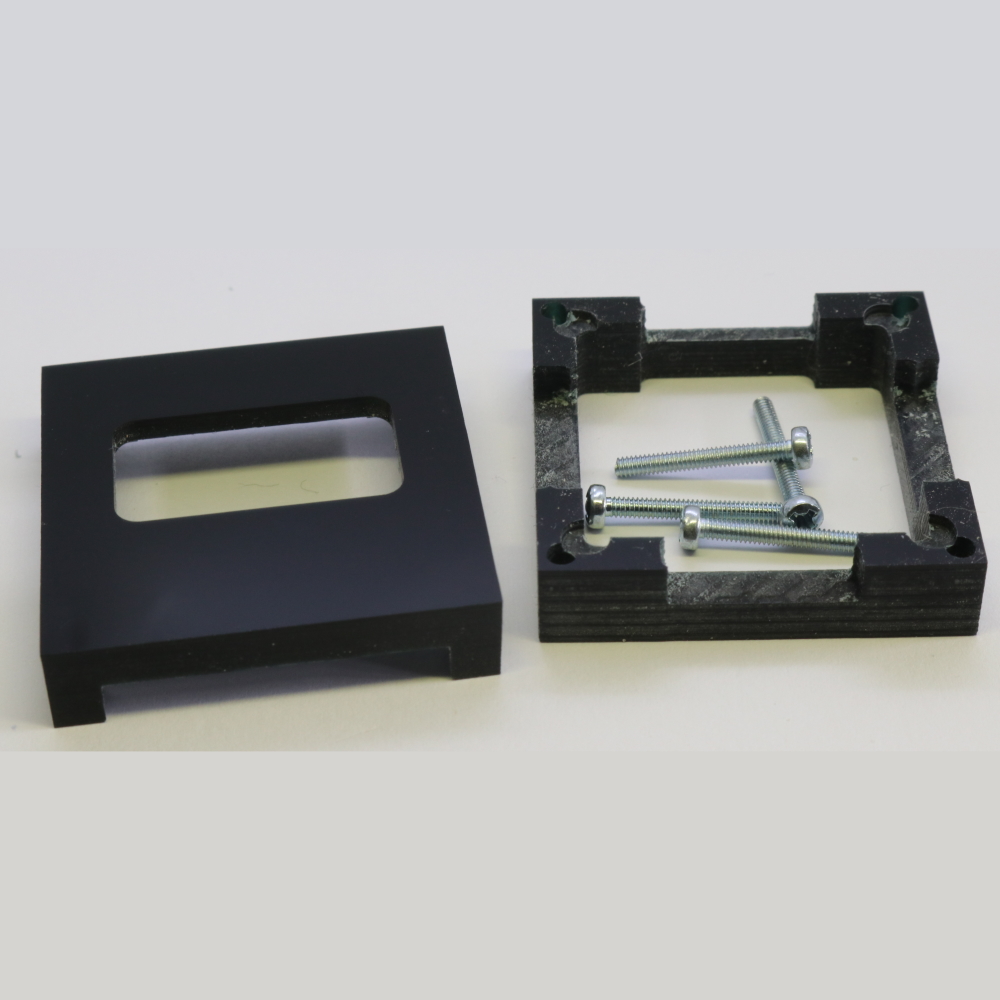

The item includes the Bezel and 4 screws – plus an optional stand-off section if that is what you purchased.

* The OLED module is NOT included with this item. *
