Description
Do you want your Arduino or Raspberry Pi project to look more professional?
In the past, it was difficult to mount the 0.96? OLED display in an enclosure or panel without making an untidy cut-out and using ugly fixing screws.
This display and bezel makes your project look more professional and tidy, by hiding an untidy cut-out and doing away with front mounting screws.
The front face of our bezel overlaps your cut-out by 2mm all round.
We have designed the bezels to match the display, and all displays we sell are tested before dispatch. You can buy in confidence that you are getting a matched and tested product.
Included

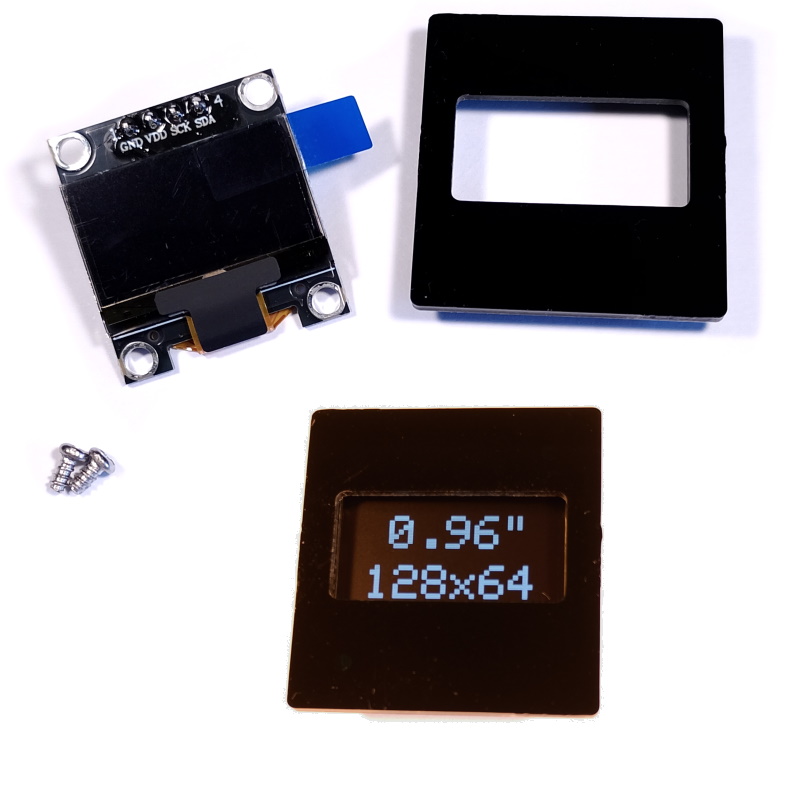

This product includes a Bezel, a matched and tested OLED display, 2 fixing screws, and instructions.
The bezel
This bezel is a custom-made part, SPECIALLY MACHINED from Perspex/acrylic. The front of the bezel has a nice gloss finish, and all other sides and edges have a machined finish. This is NOT a moulded part, nor is it a low-quality 3D-printed part. The Bezel fits the display provided.
The display
The display is a IIC (I2C) SSD1306 0.96″ OLED display.
How to use

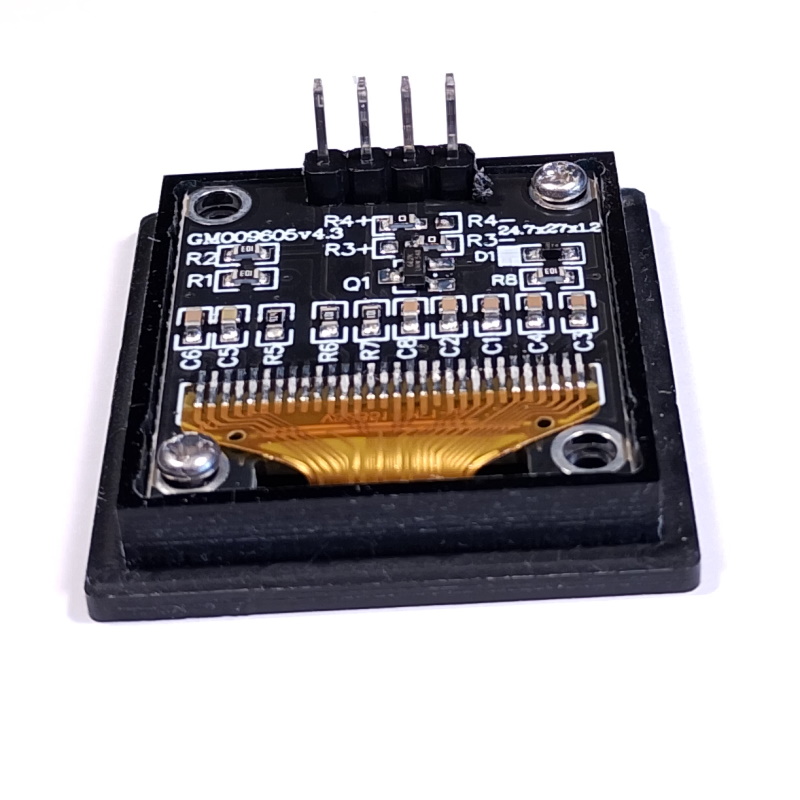

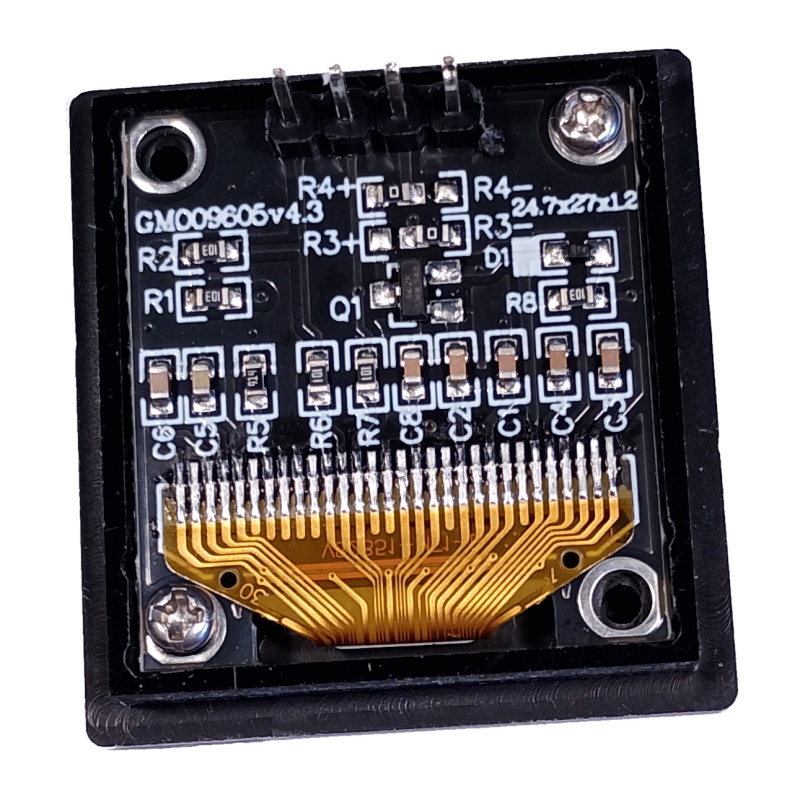

The OLED display is fixed into the rear of the bezel with the two screws provided. The display&bezel assembly is fixed into your panel or enclosure using suitable adhesive (not supplied).
Full instructions are included.
The changing OLED market
0.96″ OLED displays come in a wide range of formats, with every-changing physical dimensions.
Although we still offer our legacy bezels for the ‘original’ 0.96″ OLED displays (having a PCB of 28mm x 28mm), those displays are now less popular than the wide range of 0.96″ displays having smaller PCBs.
As a result, we have to continually adapt our designs for the current availability of 0.96″ OLED displays, so the dimensions for this product are likely to change.
If you need dimensional consistency for your own production needs, please contact us so that we can agree a fixed bezel design.
Bezel Specifications
Overall bezel size: 31.2mm x 33.1mm
Panel cut-out: 27.2mm x 29.1mm
Material: Perspex/acrylic
Colour: The front of the bezel is high-gloss black. The sides and rear of the bezel have a machined finish.
The bezel thickness is nominally 6mm, but please note that stock acrylic has a wide thickness tolerance.
The bezel is not dust or moisture proof, and it does not have IP certifications.
** This is a custom-machined item, so its measurements may vary slightly.
** Adhesives are also NOT included.
We test 100% of our displays before dispatch
