Description
* Updated design *

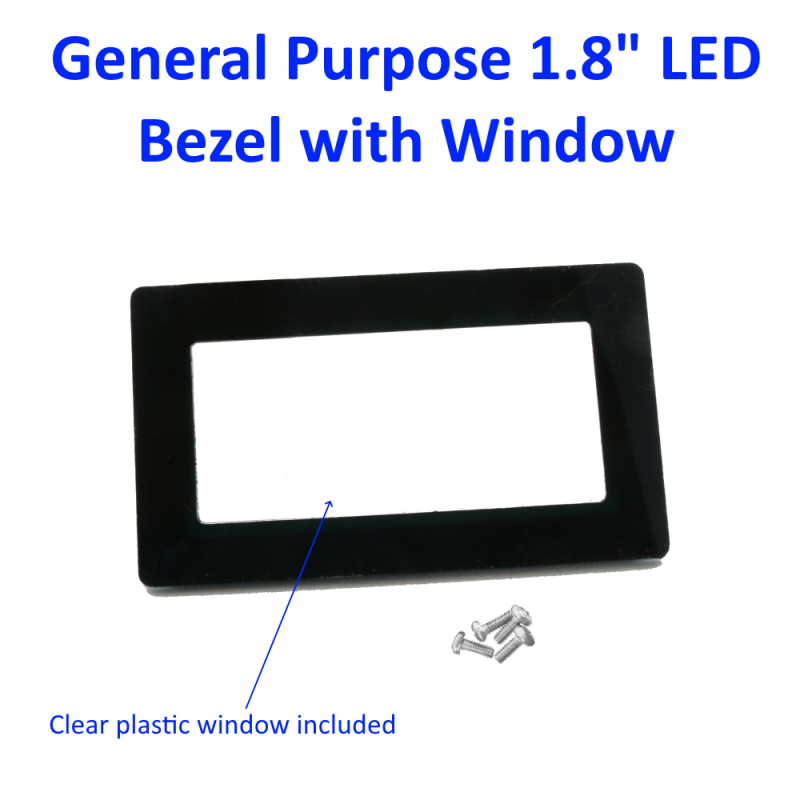

This is a ‘general purpose’ 1.8″ LED bezel, designed for presenting 7-segment and similar displays.
Unlike our other bezels, it is not designed to fit a specific display, but can be used for a wide range of applications.

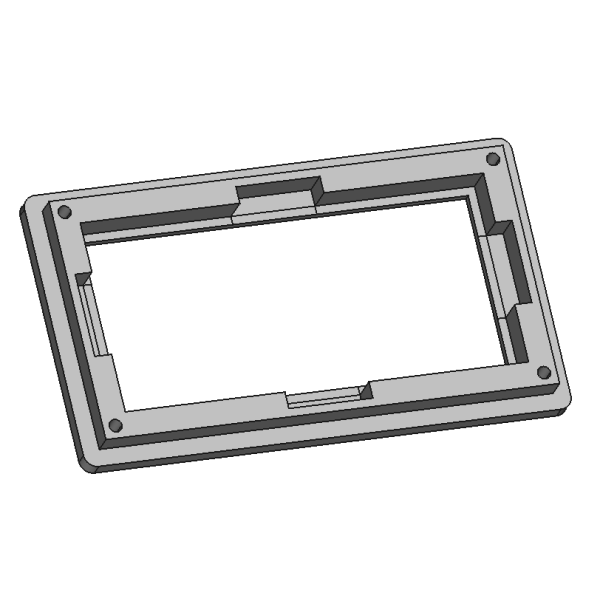

It has a 1.8″ wide viewing port featuring a clear polycarbonate or acrylic window which is flush with the bezel’s front face. It also offers four M2 tapped screw holes to aid the mounting of PCBs etc behind the bezel. We supply 4 screws with the bezel.
Dimensions

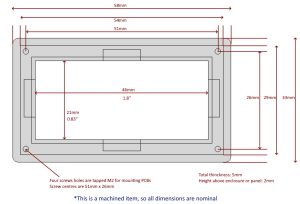

The clear window is approx 1.8″/46mm wide and 0.8″/21mm high to accommodate LED displays. Overall size is 58mm x 33mm, and the panel cut-out is 54mm x 29mm (all dimensions shows are nominal).
Use and fitting
This bezel is, as with all of our bezels, mounted using adhesive into a panel or project box. The front of the bezel overlaps an untidy cut-out by 2mm all round, and dispenses with ugly visible mounting screws. For a more professional and neater look!
This bezel is not guaranteed dust-proof, and has no Ingress Protection (IP) rating.
Included
- Bezel with window (pre-fitted)
- 4 screws
