Description
These bezels are not stocked and are MADE TO ORDER (lead time typically 1-2 weeks). Please contact us with any questions.
Maximum order volume is 3 units per order.

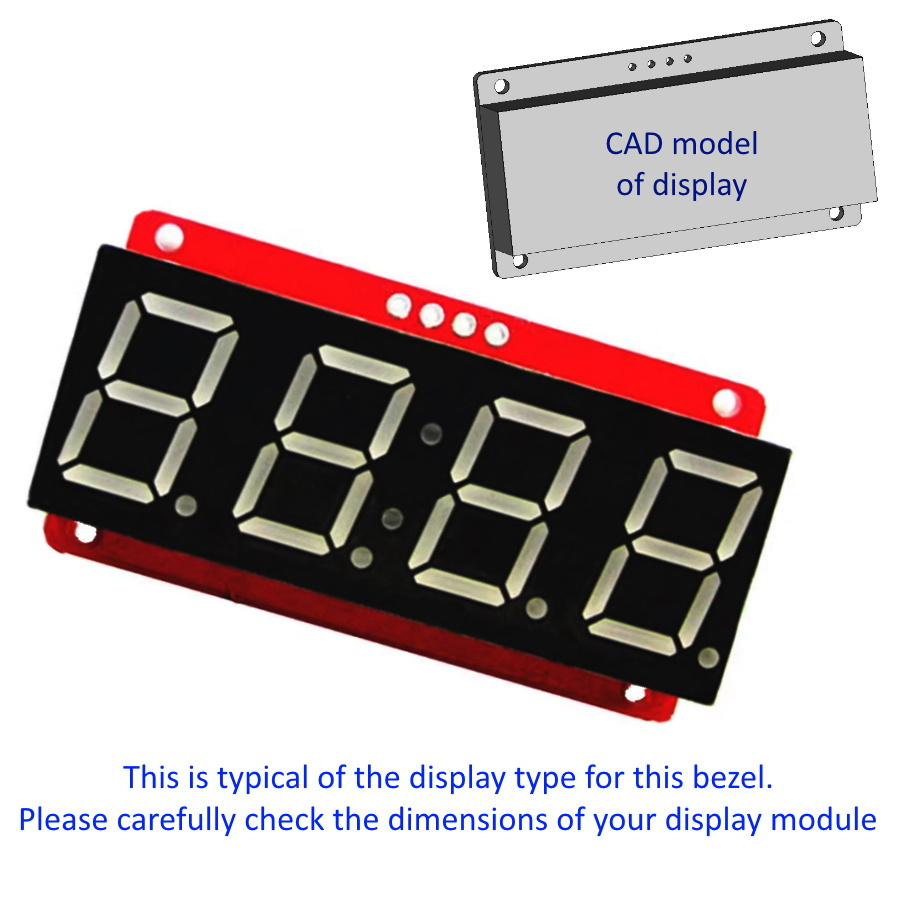

This Bezel fits a 3rd Party display unit called “0.56 4-Digit 7-Segment Display with HT16K33 I2C Backpack” (similar to that shown in the images). It may not fit other similar-looking displays, so please check with us before buying. See the Dimensions below to check suitability for your display.
The bezel is a high quality smooth-face custom-made Bezel, and is provided without a display.

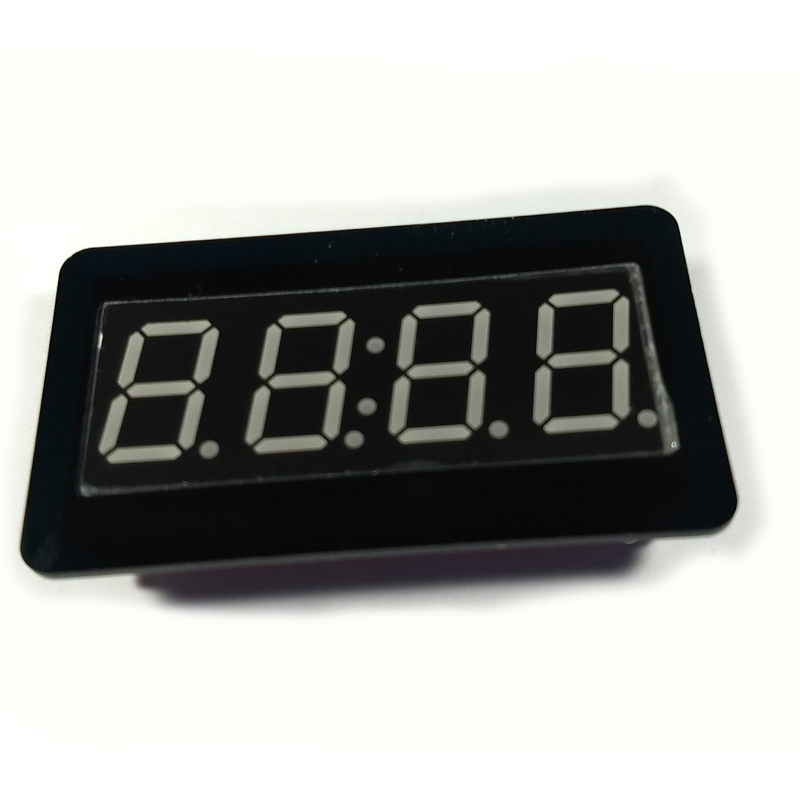

The bezel is a custom-made part, SPECIALLY MACHINED from Perspex/acrylic. The front of the bezel has a nice smooth high-gloss black finish, and the other sides have a smooth machined finish. This is not a moulded part, nor is it a cheap 3D printed part.

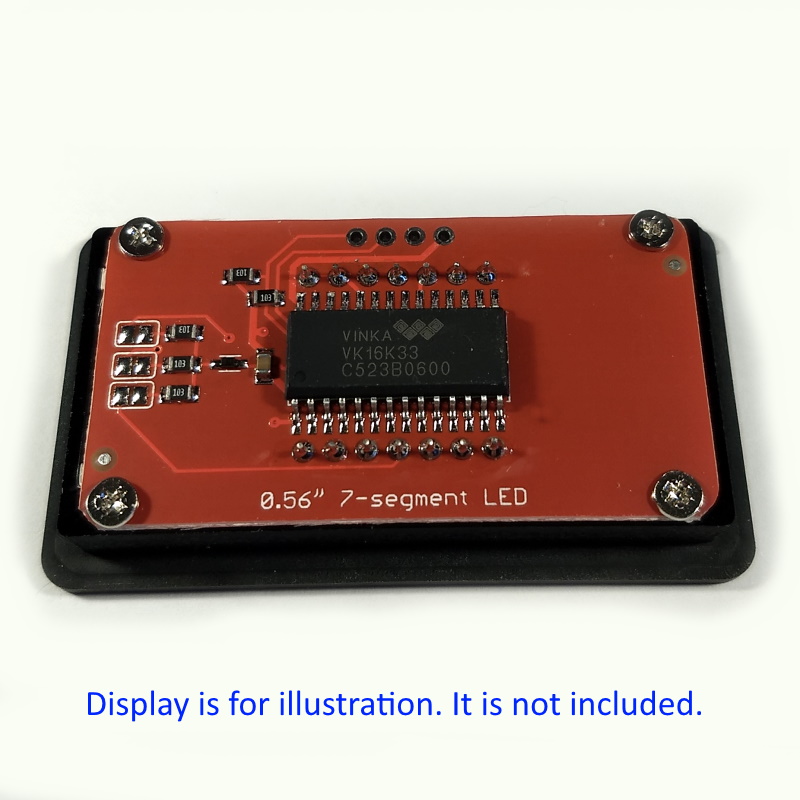

Your display attaches to the rear of the bezel with the screws provided, and that bezel+display assembly is attahced to your panel or project box with adhesive (not supplied).
The front of the bezel overlaps your cut-out by 3mm all round, thus hiding an untidy cut-out, and dispensing with ugly mounting screws – for a more professional finish.

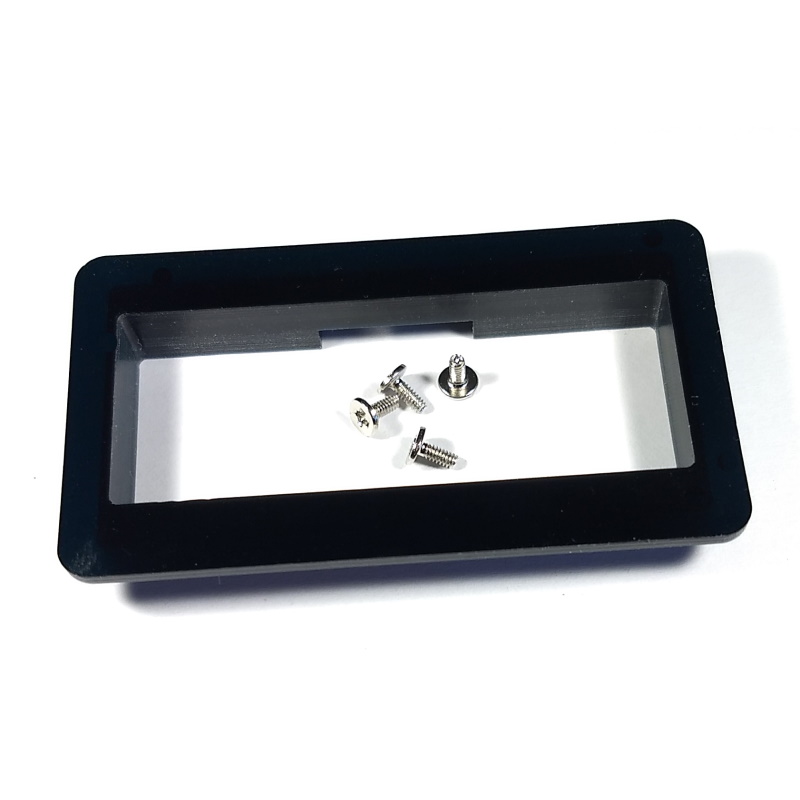

Included in this item:
- 1 x bezel
- 4 x screws

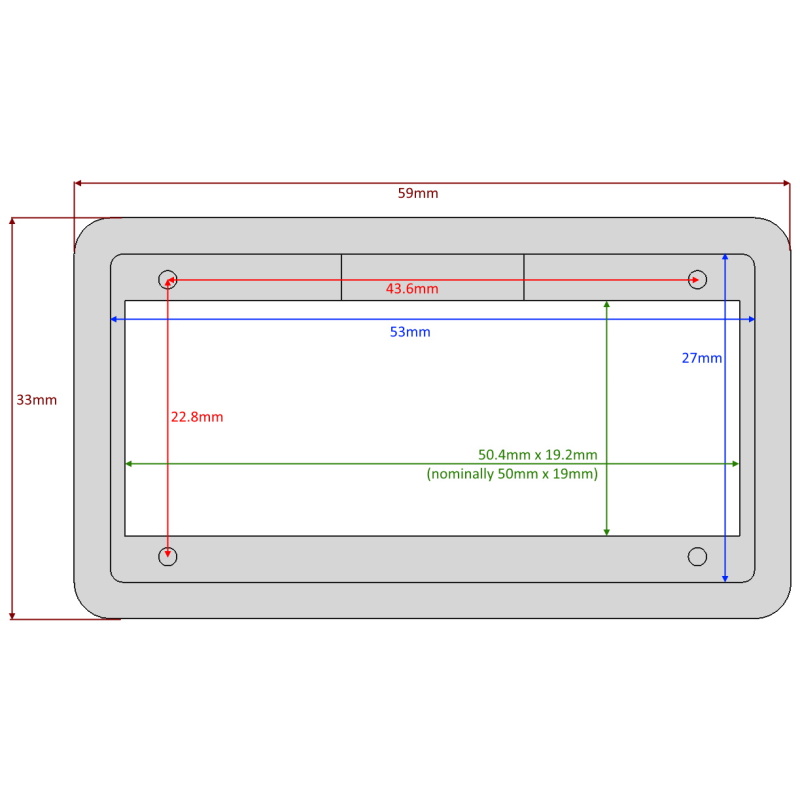

Dimensions
- Overall size: 59mm x 33mm
- Screw are M1.6 spaced at 43.6mm x 22.8mm
- The bezel is designed for an assembly with a HT16K33 I2C “backpack PCB” measuring 50mm x 26.7mm
- The bezel is designed to fit a 7-segment LED module measuring (nominally) 50mm x 19mm accurately soldered squarely to the “backpack PCB”
- Panel cut out 53mm x 27mm
* This is a machined item to the dimensions may vary
** This bezel does NOT have Ingress Protection ratings. It is NOT certified as moisture or dust proof.
