Description
New design

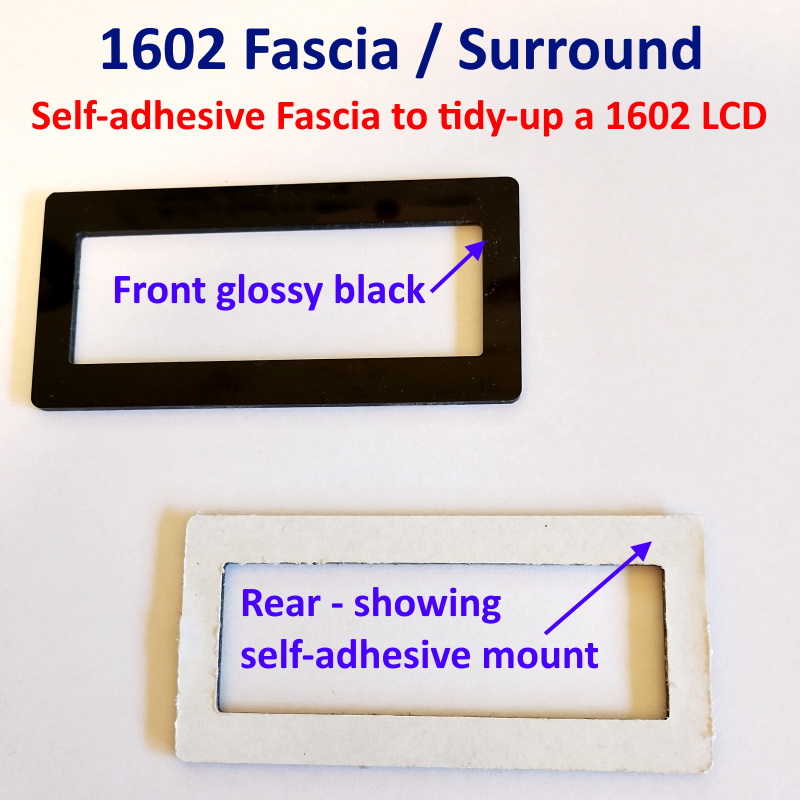

This is a new, updated design. This fascia now has a self-adhesive back, so all you have to do is to remove the adhesive backing and press into place.
What is it for?
For existing projects without one of our full 1602 LCD bezels, this FASCIA option just might be the way to tidy up the look of the project.
This fascia is designed to:
1) Hide an untidy cut-out
2) Hide the mounting screw heads (if you have used screws).
The fascia has a glossy black finish on the front.
How it works
It is really straightforward. Assuming the existing surface is suitable and there is adequate space, you remove the self-adhesive backing and press the fascia around the LCD display.
Note the adhesive has a good “grab” so you must precisely position the fascia.
The fascia is approximately 2mm thick, so for a flush fit to the front of the display, you might wish to move the LCD forward a little.
Important notes
- This fascia requires that any screw heads are countersunk or otherwise flush with the surface of your enclosure or panel.
- This fascia will only fit the commonly-used 1602 display, using the stated dimensions below.
- Please check the dimensions of this fascia (below) to make sure it will fit your project.
Fascia dimensions*
External: 84mm x 40mm
LCD Display Module Hole: 71.5mm x 24.5mm
Thickness: approx 2mm
Material: High Impact Polystyrene
This is a machined item so the dimensions may vary a little.
What is included in this item
- Fascia to fit an existing 1602 LCD
- Instructions
This items does NOT include a display or any other part
